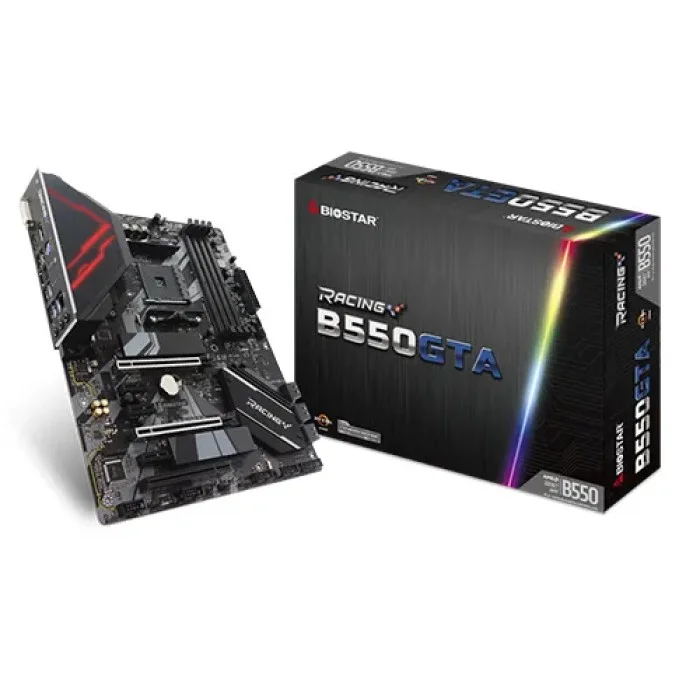

BIOSTAR B550GTA AMD B550 Gaming Motherboard

9,000৳

Socket AM4 Support AMD 3rd Gen AMD Ryzen
1 X PCI Slot 1 X PCIe 4.0/ 3.0 X16 Slot (PEX16_1)
ATX Form Factor Dimension: 30.5cm X 24.4cm ( W X L )
6 X SATA III (6.0Gb/S) Connector 2 X USB 2.0 Header

1 in stock

Categories: AMD, Motherboard Brand: Biostar

Description
Reviews (0)

Description

BIOSTAR B550GTA AMD B550 Gaming Motherboard

Supported CPU	Socket AM4 Support AMD 3rd Gen AMD Ryzen™ (Matisse / Renoir) Processors And Ryzen™ 4th Gen (Vermeer) Processors Support For Future AMD Ryzen Processors With BIOS Update
Chipset	AMD B550
Memory	3rd Gen AMD Ryzen Processors (Matisse CPUs) Support For DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen With Radeon Graphics Processors (Renoir APUs) Support For DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 X DDR4 DIMM Memory Slot, Max. Supports Up To 128 GB Memory Each DIMM Supports Non-ECC 8/ 16/ 32 GB DDR4 Module
Slots	1 X PCI Slot 1 X PCIe 4.0/ 3.0 X16 Slot (PEX16_1): Supports X 16 Lanes With AMD Ryzen™ 3rd Gen Processors. (Matisse Only) Supports X8 Lanes AMD Ryzen™ With Radeon Vega Graphics Processors. (Depended On CPU) 1 X PCIe 3.0 X 16 Slot (PEX16_SB_1): Supports X 4 Lanes 3 X PCIe 3.0 X 1 Slot * According To Different CPUs Will Have Different Speeds. * PCIe 4.0 Speed Only For AMD® Ryzen™ 3rd Gen Matisse. * When Using PCIe X 1 Slots (PEX1_1/ PEX1_2/ PEX1_3 ), PCIe X 16 Slot (PEX16_SB_1) Will Be Adjusted To X1 Lanes.
Supported Storage	6 X SATA III Connector (6Gb/S) : Supports AHCI & RAID 0, 1, 10 2 X M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD Module Supports PCIe 4.0 X 4 (64Gb/S)/ 3.0 X 4 (32Gb/S) – NVMe/ AHCI SSD Supports SATA III (6.0Gb/S) SSD * M.2 (M Key) Socket: The Bandwidth Is Depended On CPU. Supports PCIe 4.0 X 4 (64Gb/S) Speed, Which Depends Only On Ryzen 3rd Gen Matisse. * When M2_PCIe-SATA2 Slot Is Occupied By SATA Mode, The SATA_2L Connector Will Be Disabled.
LAN	RTL8125 10/ 100/ 1000/ 2500 Mb/S Auto Negotiation, Half / Full Duplex Capability Supports Realtek 2.5GbE LAN
Audio	ALC1150 7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB Port	1 X USB 3.2 (Gen2) Type-C Port (1 On Rear I/O) 1 X USB 3.2 (Gen2) Type-A Port (1 On Rear I/O) 6 X USB 3.2 (Gen1) Port (4 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Port (2 On Rear I/Os And 4 Via Internal Headers)
Internal I/O Ports	6 X SATA III (6.0Gb/S) Connector 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X CPU Water Cooling Connector (OPT_FAN1) 2 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Clear CMOS Header 1 X S/PDIF Out Connector 1 X COM Port Header 2 X LED Header (5V) 1 X LED Header (12V)
External I/O Ports	1 X PS/2 Keyboard / Mouse 1 X DVI-D Port 1 X DP Port 1 X HDMI Port 1 X LAN Port 1 X USB 3.2 (Gen2) Type-C Port 1 X USB 3.2 (Gen2) Type-A Port 4 X USB 3.2 (Gen1) Port 2 X USB 2.0 Port 3 X Audio Jack
DIMENSIONS	ATX Form Factor Dimension: 30.5cm X 24.4cm ( W X L )
Form Factor	ATX Form Factor
