Out Of Stock
Pre-Owned

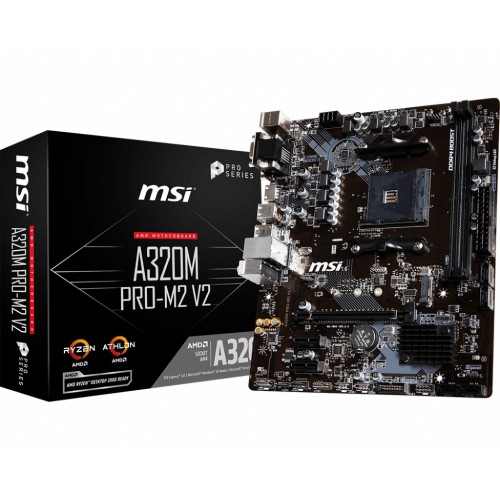

MSI A320M PRO-M2 V2 AM4 AMD Motherboard
5,500৳
- Model: MSI A320M PRO-M2 V2
- Supports AMD Ryzen 1st and 2nd Generation
- DDR4 Boost & Audio Boost
- EZ Debug LED
- Turbo M.2
Out of stock
Description
MSI A320M PRO-M2 V2 AM4 AMD Motherboard
| Supported CPU | Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4 | |
| Chipset | AMD B450 Chipset | |
| Form Factor | m-ATX | |
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot – Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors – Supports x8 speed with AMD Ryzen with Radeon Vega Graphics and A-series/Athlon X4 processors – Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 2 x PCIe 2.0 x1 slots |
|
| M.2 Socket | 1 x M.2 slot (Key M) – Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics and A-series /Athlon™ X4 Processors) and SATA 6Gb/s – Supports 2242/ 2260 /2280 storage devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz1 Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
|
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI 1.4 port, supporting a maximum resolution of 4096×2160@24Hz Only support when using Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series processors. |
|
| Max Shared Memory | Maximum shared memory of 2048 MB | |
| Connector & Ports | ||
| HDMI | Yes (1 x HDMI ) | |
| DVI-D (s) | Yes | |
| USB (s) | AMD A320 Chipset : 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) AMD processor : 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port (s) | 1 x Realtek RTL8111H Gigabit LAN controller | |
| Supported Storage | AMD A320 Chipset : 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics and A-series /Athlon X4 Processors) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Audio | 7.1-Channel High Definition Audio | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper |
|
| Others | ||
| Special Features | DIRECTX: 12 VGA: Yes DIMENSIONS :9.6 in. x 8.1 in. (24.4 cm x 20.6 cm) |
|
