Pre-Owned

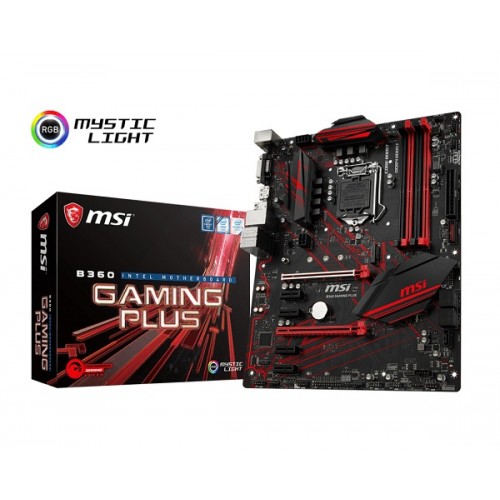

MSI B360 Gaming Plus 8th Gen DDR4 Motherboard
6,500৳
- Model: MSI B360 Gaming Plus
- Intel® B360 Chipset
- 8th Gen Pentium Gold, Celeron, i3, i5 & i7 processor
- MEMORY CHANNEL & SLOTS: Dual 4
- M.2 SLOT: 1
1 in stock
Description
MSI B360 Gaming Plus 8th Gen DDR4 Motherboard
| Supported CPU | Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151 | |
| Chipset | Intel® B360 Chipset | |
| Form Factor | ATX Form Factor | |
| Expansion Slots | ||
| PCI | 2 x PCIe 3.0 x16 slots (support x16/x4 modes) 4 x PCIe 3.0 x1 slots |
|
| M.2 Socket | 1 x M.2 slots (Key M) | |
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports non-ECC UDIMM memory Supports Intel® Extreme Memory Profile (XMP) Supports DDR4 2666/ 2400/ 2133 MHz |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2, supports a maximum resolution of 4096×2304 @ 60Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz |
|
| Connector & Ports | ||
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
|
| LAN Port (s) | 1 x Intel I219-V Gigabit LAN controller | |
| Audio | Dual Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | PS/2 Combo Port LAN Port HD Audio Connectors USB 2.0 Port DVI-D DisplayPort USB 3.1 Gen2 Type A + C USB 3.1 Gen1 |
|
